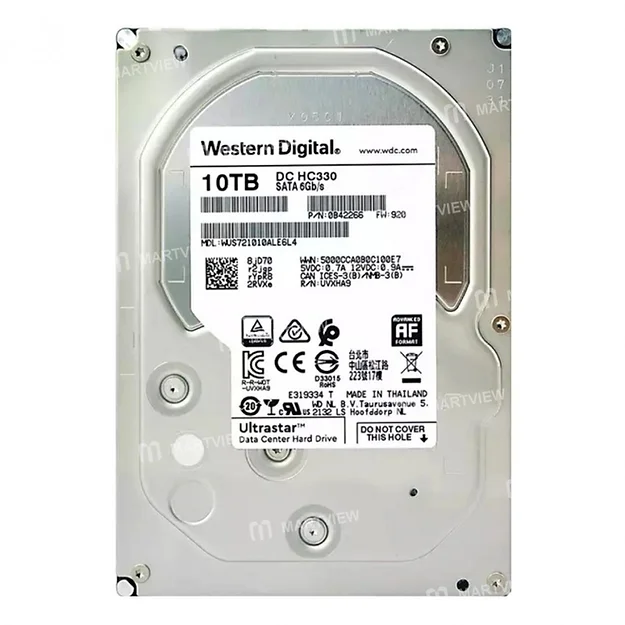

WD UltraStar DC HC330 10TB SATA 6Gb/s 7200 RPM Enterprise HDD

Applications and Workloads

Cloud & Hyperscale Storage
Massive Scale-Out (MSO), high-density data centers
Distributed File Systems
Bulk storage using Object storage solutions like Ceph and OpenStack Swift
Primary and secondary storage for Apache Hadoop for Big Data Analytics
Surveillance Analytics

The Ultrastar DC HC300-series provides low to mid-capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications.

Hard drive
encrypted
10 TB
internal
3.5″
SATA 6Gb/s
7200 rpm
buffer: 256 MB
Self-Encrypting Drive (SED)
Specification :

Brand WD
Product Line WD Ultrastar DC HC330
Model WUS721010ALE6L4
Hard Drive Type Internal hard drive
Form Factor 3.5″
Form Factor (metric) 8.9 cm
Form Factor (Short) 3.5″
Form Factor (Short) (metric) 8.9 cm
Storage Interface Serial ATA-600
Interface Serial ATA-600
Capacity 10 TB
Average Seek Time 8 millisecond
Average Latency 4.16 millisecond
Data Transfer Rate 600 MBps
Internal Data Rate 260 MBps
Buffer Size 256 megabyte, 256 megabyte
Spindle Speed 7200 revolutions per minute
Bytes per Sector 512
Non-Recoverable Errors 1 per 10^15
Load / Unload Cycles 600,000
24×7 Operation Yes
Features 24×7 availability, Advanced format 512e, Rotational Vibration (RV) compensation technology, Secure Erase function
Interface Provided
Interfaces 1 x SATA 6 Gb/s
Bay Required
Compatible Bay 3.5″
Power Consumption
Power Consumption 8 Watt (idle), 9.2 Watt (typical)
Miscellaneous
Encryption Details Self-Encrypting Drive (SED)
Hardware Encryption Yes
MTBF 2,000,000 Hours
Compliant Standards RoHS
Dimensions & Weight
Width 4 inch
Depth 5.8 inch
Height 1 inch
Weight 26.45 ounce
Service & Support
Warranty 5-year warranty
Shock & Vibration Tolerance
Shock Acceleration (Operating) 70 gram
Shock Duration (Operating) 2 ms half-sine wave
Shock Acceleration (Non-operating) 250 gram
Shock Duration (Non-operating) 2 ms half-sine wave
Vibration Acceleration (Operating) 0.67 gram
Vibration Frequency Range (Operating) 5-500 Hz
Vibration Acceleration (Non-operating) 1.04 gram
Vibration Frequency Range (Non-operating) 2-200 Hz
Environmental Parameters
Min Operating Temperature 41 degree Fahrenheit
Max Operating Temperature 140 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
